7.311 RPCP/RLCP UL508 Listed Custom Control Panel
RPCP/RLCP UL508 Listed Custom Control Panel

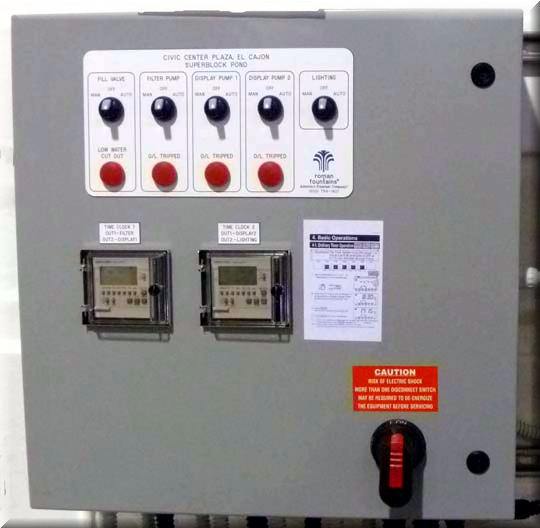

The RPCP/RLCP is a UL508 Listed Custom Control Panel designed for use on fountains and reflecting pools where automatic control required for display and filtration pumps plus lighting control circuits. Pre-engineered and factory tested, the unit is built under the auspices of Underwriters Laboratories and include a U.L. 508 label. The RPCP/RLCP consists of a main disconnect, power distribution breaker(s) (Class A GFCI as required), pump contactors w/overload relay(s) (as required), lighting contactor(s) (as required), and a water level makeup/low level equipment protection circuit. The RPCP/RCLP will also house any LED power supplies and DMX drivers required for project. Also included are 7day/24hour electronic time clocks, 3-pos H.O.A. selector switches, and field connection terminal blocks. The panel is pre-wired in a NEMA 4 enclosure and factory tested with all loads, circuits and switching functions verified prior to delivery. Please see cut sheet for additional information.
Power requirement:
120vac., 1-phase, 2-wire feeder + GND
120-240vac, 1-phase, 3-wire feeder + GND
120-208vac, 3-phase, 4-wire feeder + GND
460vac, 3-phase, 3wire feeder + GN
Note: Custom fabricated per project. Wiring Diagram will be prepared for customer approval prior to fabrication.
